VACUUM GENERATORS
PROMSKV
SIDE CHANEL BLOWERS
PROMSKV 2,3 KW:
Motor rating power: 2,3kW at 50Hz; 2,55kW at 60Hz
Air volume: 315m³/h at 50Hz; 375m³ at 60Hz
Varying-voltage-range: 400V / 50Hz; 380 - 480V / 60Hz
Power transmission: 2-layered
Certification: CE, UL
Relief valve: on request
PROMSKV 4,3 KW:
Motor rating power: 4,3kW at 50Hz; 4,8kW at 60Hz
Air volume: 315m³/h at 50Hz; 375m³ at 60Hz
Varying-voltage-range: 400V / 50Hz; 380 - 480V / 60Hz
Power transmission: 2-layered
Certification: CE, UL
Relief valve: on request
PROMSKV 7,5 KW:
Motor rating power: 7,5kW at 50Hz; 8,6kW at 60Hz
Air volume: 530m³/h at 50Hz; 620m³/h at 60Hz
Varying-voltage-range: 400V / 50Hz; 380 - 480V / 60Hz
Power transmission: 2-layered
Certification: CE, UL
Relief valve: on request

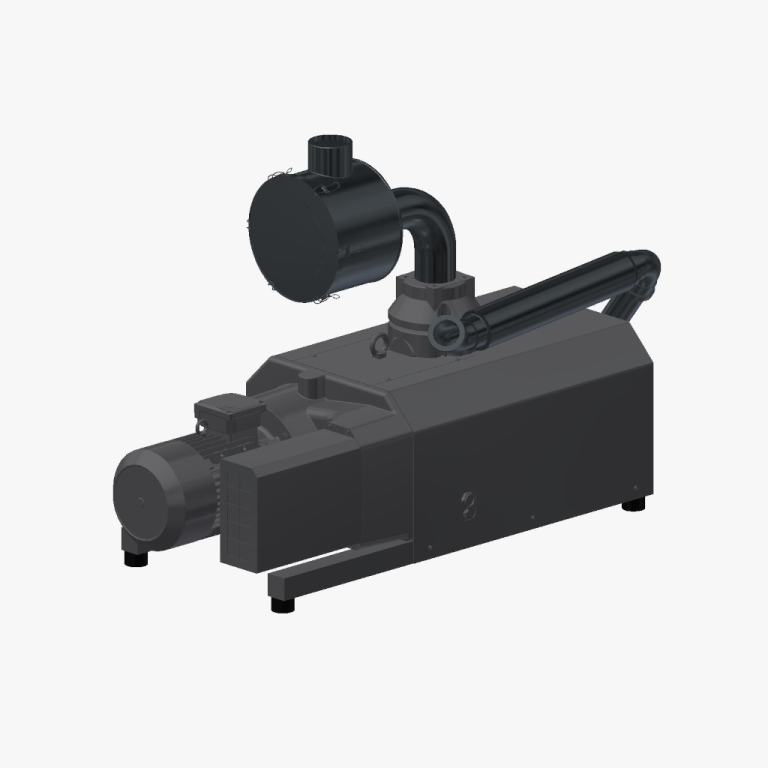

PROMKVP
VACUUM PUMPS
PROMKVP 4,3 KW:
Motor rating power: 4,3kW at 50Hz; 5,2kW at 60Hz
Air volume: 200m³/h at 50Hz ; 240 m³/h at 60Hz
Varying-voltage-range 380 - 400V / 50Hz; 460V +/-10% 60Hz
Certification: CE, UL
Relief valve: integrated
Technology: Klaue
PROMKVP 6,0 KW:
Motor rating power: 6,0kW at 50Hz; 8,0kW at 60Hz
Air volume: 300m³/h at 50Hz; 360 m³/h at 60Hz
Varying-voltage-range: 380 - 400V / 50Hz; 460V +/-10% 60Hz
Certification: CE, UL
Relief valve: integrated
Technology: Klaue
PROMKVP 7,5 KW:
Motor rating power: 7,5kW at 50Hz; 9,5kW at 60Hz
Air volume: 400m³/h at 50Hz; 470 m³/h at 60Hz
Varying-voltage-range: 380 - 400V / 50Hz; 460V +/-10% 60Hz
Certification: CE, UL
Relief valve: integrated
Technology: Klaue

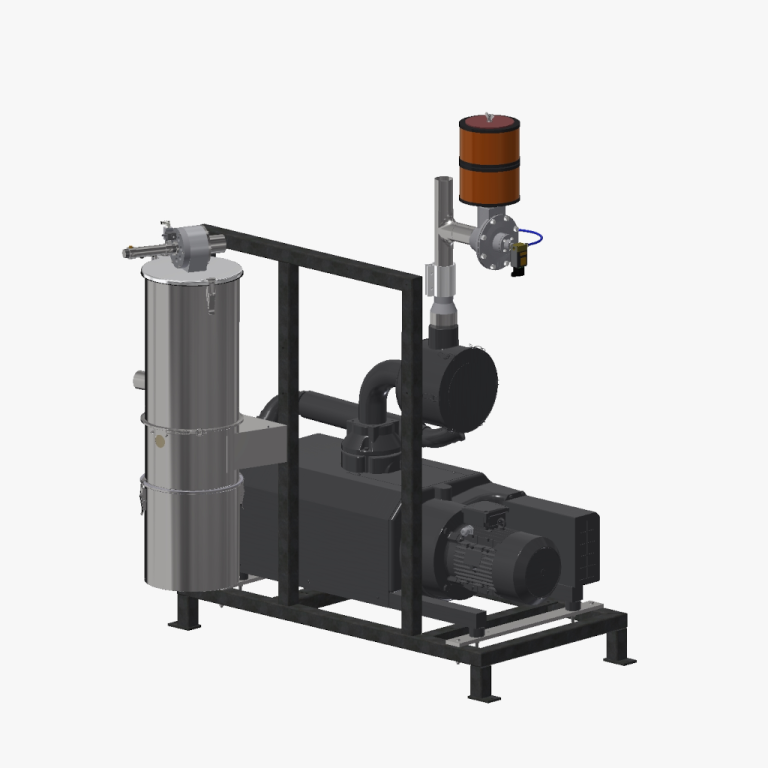

PROMVS
VACUUM STATIONS
PROMVS MONO STATION:
Vacuum generator: Side channel blower, Vacuum pump
Motor rating power Skv: 2,3kW; 4,3 kW; 7,5kW
Motor rating power KVp: 4,3kW; 6,0kW; 7,5kW
Design: Mounting frame, pre-filter, bypass
PROMVS DUO STAION:
Vacuum generator: Vacuum pump
Motor rating power Kvp: 4,3kW; 6,0kW; 7,5kW
Design: Mounting frame, pre-filter, bypass, separate load unit
Options: Changeover coupling station (Standby)
